MILLS 72F Mini Cable G657A1 Black (5.8mm) 2000m

72F Mini Cable G657A1 Black (5.8mm) is designed for installation into microducts by blowing.

Overview
Product Diameter 5.8mm
Product Length 2000 metres (2 Kilometres)
Product Weight 25.9g/m
Colour Black
Metal Free Yes
Minimum Bend Radius (Note 4) 19D
Maximum Installation Tension 475N @ 0.4% Fibre Strain
Maximum Operation Tension 55N @ 0% Fibre Strain
Product Specification MHT441
Fibre Specification ITU-T G.657.A1, MHT2050

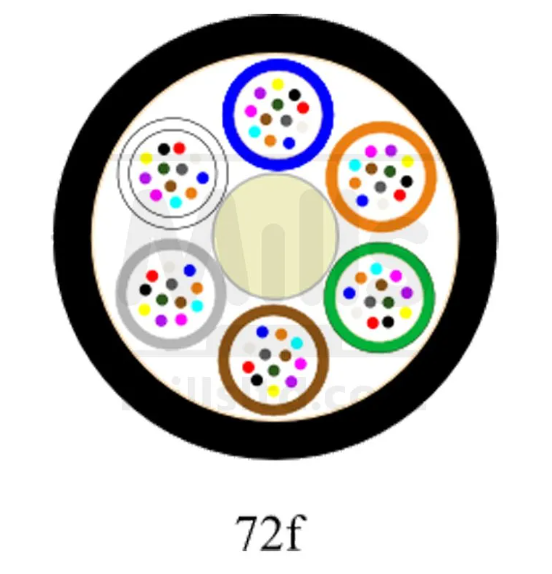

Fibre Details 72x SM G657A1- Blue, orange, green, brown, grey, white, red, black, yellow, violet, pink, aqua

Loose Tubes 6x 1.45/1.15mm, PBT gel filled, 12x SM G657A1 - Blue, orange, green, brown, grey, white

Construction
Outer Sheath HDPE, black, 0.6mm thick
Strength Member 1.6mm FGRP
Cable Core SZ stranding

Length 2000m
