12F Mini Cable G657A1 Black (5.8mm) designed for installation into microducts by blowing.
Overview
Product Diameter 5.8mm
Product Weight 18.6g/m
Colour Black
Metal Free Yes
Minimum Bend Radius (Note 4) 13D
Maximum Installation Tension 450N @ 0.4% Fibre Strain
Maximum Operation Tension 55N @ 0% Fibre Strain
Fibre Specification ITU-T G.657.A1, MHT2050
Fibre Details 12x SM G657A1 - Blue, orange, green, brown, grey, white, red, black, yellow, violet, pink, aqua
Loose Tubes 1x 1.45/1.15mm, PBT gel filled, 12x SM G657A1 blue
Other Elements 5x Filler(s) - Natural, Natural, Natural, Natural, Natural

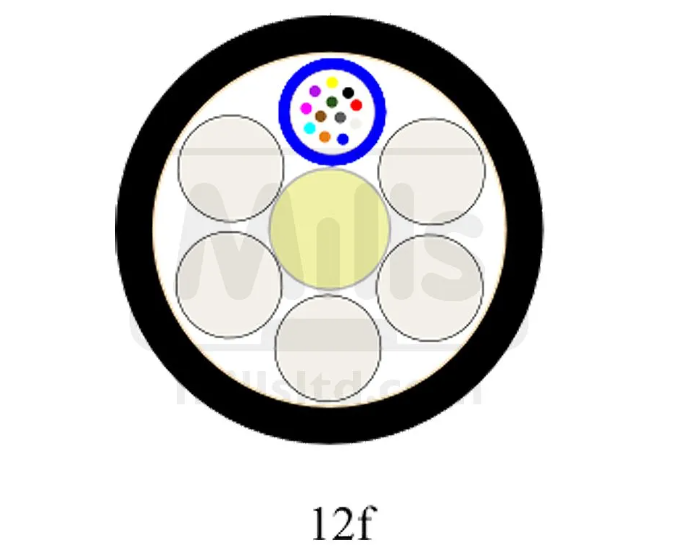

Construction
Outer Sheath HDPE, black, 0.6mm thick
Strength Member 1.6mm FGRP
Cable Core SZ stranding
Print Marking
EMTELLE FIBREFLOW - Year - 12f - G657A1 - PRODUCT CODE - Wxxxxxxxx - Metre Mark
Length 4000m (4 Kilometres)
Note 1: Diameters and thicknesses are measured to nearest 0.1mm.
Note 2: All dimensions and weight are 'nominal'.
Note 3: ‘nominal’ data is based on middle-spec, and is for information only, not for inspection purposes.
Note 4: 'D' is the appropriate product diameter for the bending direction
