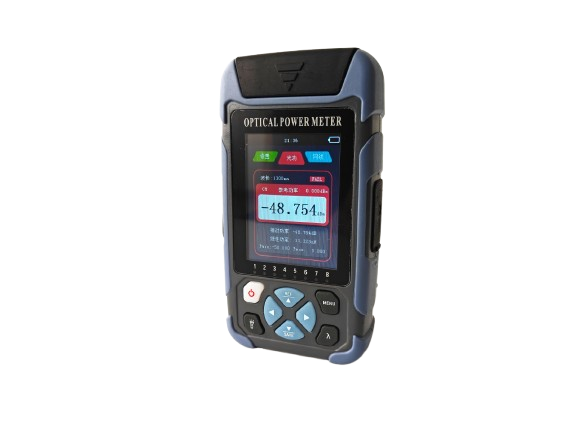

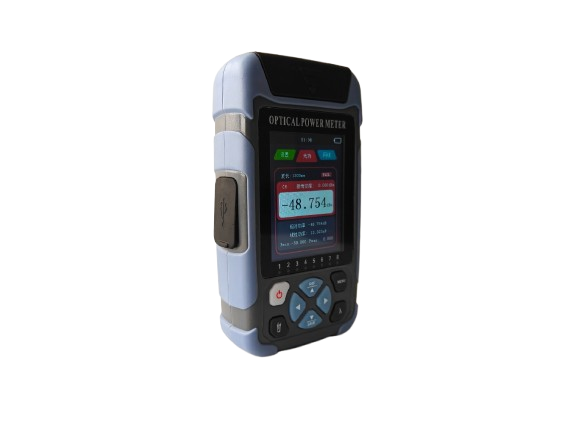

CIRCON H30 Optical Power Meter
The H30 OPM+VFL Integrated Machine by Hi cloud is a multifunctional optical testing device designed for precise optical power measurement, visual fault location, and optional RJ45 cable tracking and laser ranging. With a 1mm large photosensitive surface detector and a 2.8-inch color LCD, it combines ergonomic design with advanced functionality for field technicians and engineers working in fiber optic networks
Key Features:
Optical Power Meter:
- Wavelength range: 800–1700nm
- Detector type: InGaAs
- Power measurement range: +10 to -70dBm
- Measurement precision: ±5% ±26dBm
- Standard wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1650nm

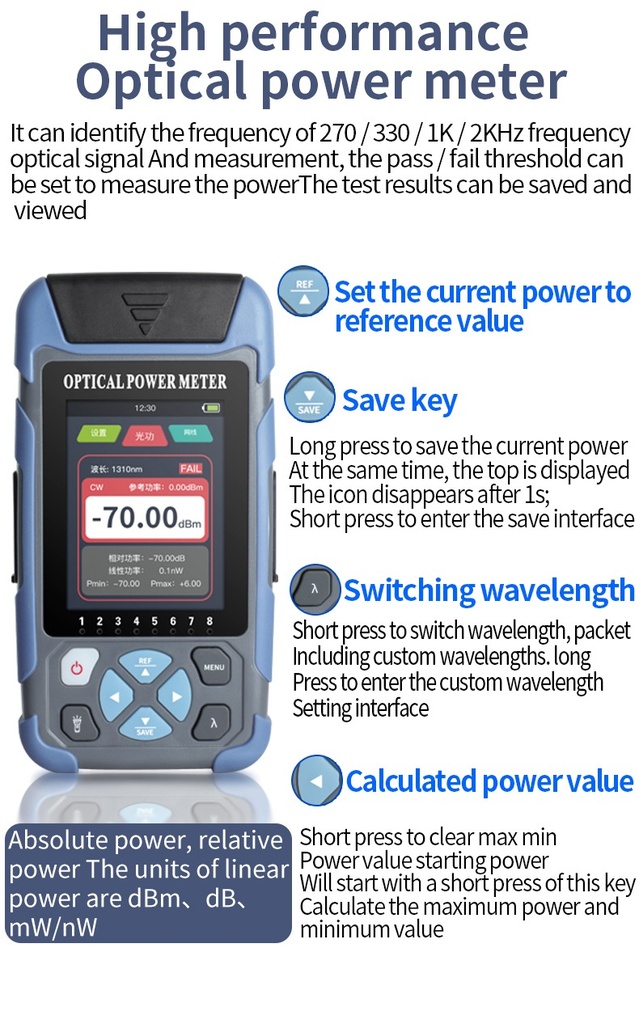

- Frequency identification: 270Hz, 330Hz, 1kHz, 2kHz
- Display resolution:
- Linear: 0.01%
- Logarithmic: 0.01/0.1dBm
- Storage capacity: 1000 records
- Connectors: Universal joint / FC / SC / ST
Visual Fault Locator:
- Wavelength: 650±30nm
- Output power: ≥1mW
- Modes: CW / 1Hz / 2Hz
- Connectors: Universal joint / FC / SC / ST
RJ45 Cable Tracking (Optional):
- Test range: ≤300m
- Tracking modes: Line, live line, no tone search
- Supports single and continuity measurement
Laser Ranging (Optional):
- Wavelength: 650±30nm
- Test range: 0.05–40m
- Precision: ±2mm
Display & Interface:
- Screen: 2.8-inch color LCD, 240×320 resolution
- Wireless interface: Bluetooth (optional)
- Data upload: USB supported
Power & Environmental:
- Battery: Rechargeable, 12V/1 hour charge
- Battery life: ≥24 hours
- Operating temperature: -10°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: Non-condensing
- Dimensions: 140mm × 73mm × 37mm
Product Features:
- Large photosensitive surface for enhanced detection
- Clear dark current and automatic frequency identification
- Max/Min power tracking and automatic wavelength recognition
- Adjustable refresh rate for resolving power
- User-customizable wavelengths (up to 50)
- Optional flashlight and Bluetooth connectivity
- Optional RJ45 sequence and tracking functions
- Optional laser ranging capability
Applications:
- Optical signal power measurement
- Fiber link loss and continuity testing
- Fault diagnosis in fiber optic networks
- Optical cable construction and maintenance
- Optical CATV and sensing systems
- Passive device testing (e.g., splitters, couplers, switches)
The H30 OPM+VFL Integrated Machine is a versatile and durable solution for professionals requiring reliable optical testing tools in the field. Its modular options and high-precision capabilities make it suitable for a wide range of fiber optic applications
