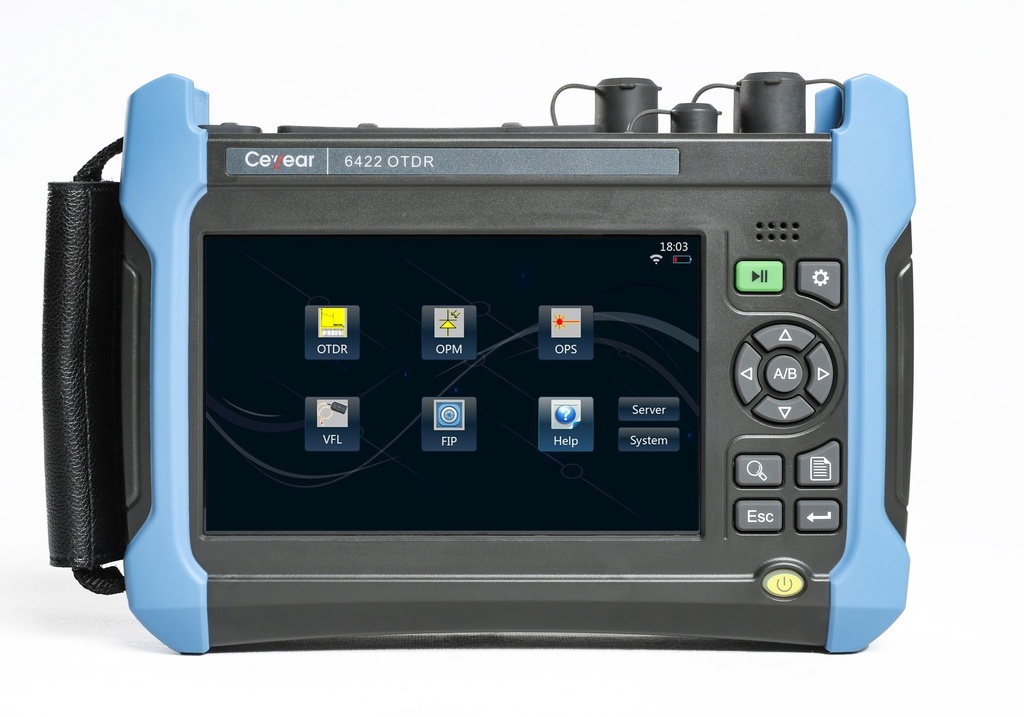

CEYEAR 6422 OTDR
6422 series high-performance OTDR adopts 7-inchcolorscreen, which makes the operation easier. It integrates multifunction functions to help customers solve the communication link field test and later maintenance more effectively. The maximum dynamic range is 46dB. It can be penetrated through the light splitter to effectively improve the performance in PON network test. They are mainly used to measure the length, loss and connection quality of optical fiber and cable. It is widely used in engineering construction, line maintenance test, emergency repair, development and production measurement of optical fiber and optical cable. It is mainly used in urban trunkline, backbone network and metropolitan area network.
Key Features and Specifications:
- Supports a broad wavelength range for single-mode and multi-mode fiber: 850/1300/1310/1490/1550/1625/1650 nm
- Dynamic range up to 46 dB for deep network visibility
- Minimal blind zones (event: 1.5–4.5 m / attenuation: 4.5–8 m) for precise fault location
- Automatic fiber link mapping and real-time alarm detection
- Fast test modes with easy graphical interpretation
- VFL (650 nm), OPM, LS, End face Tester, WiFi remote control included
- Interfaces: USB, Micro USB, Ethernet, MicroSD
- Compatible with multiple connectors: FC/UPC standard; SC, ST, LC optional
- 7" capacitive touch display (800×480 resolution)
- Durable lithium battery (6400mAh, ≥8h runtime)
- Environmental resilience: operational from -10°C to +50°C; up to 95% humidity
- Lightweight and rugged: 1.8 kg; 252 × 180 × 55 mm
The Ceyear 6422 combines precision, automation, and versatility to streamline fiber testing across various network types. It’s your reliable partner for construction, maintenance, emergency troubleshooting, and production environments.
Data Sheet Click To Open.
