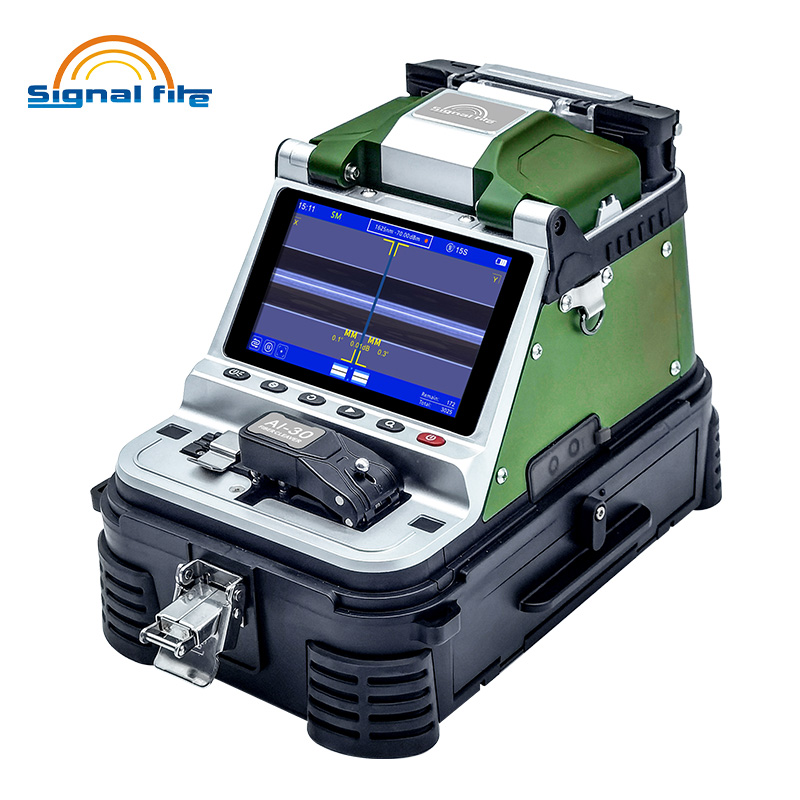

AI-30 Fiber Fusion Splicer

https://www.circonegypt.com/web/image/product.template/503/image_1920?unique=23a0e6d

The AI-30 is SignalFire’s fourth-generation trunk line fusion splicer, engineered for long-distance, high-precision optical fiber deployment. Its groundbreaking design integrates core alignment, fusion splicing, and advanced fiber cleaving technologies—all within a compact, rugged system built for fieldwork.

Equipped with six motors, a built-in high-precision electric cleaver, and real-time luminous flux alignment, the AI-30 dramatically boosts splicing accuracy and efficiency. With just 6 seconds for splicing and 15 seconds for heating, this unit is perfect for professionals handling high-density backbone cables and FTTH installations across challenging environments.

$ 0.00 0.0 USD $ 0.00

$ 0.00

This combination does not exist.

Contact Us





Title of the document

Data Sheet Click To Open.

The AI-30 is SignalFire’s fourth-generation trunk line fusion splicer, engineered for long-distance, high-precision optical fiber deployment. Its groundbreaking design integrates core alignment, fusion splicing, and advanced fiber cleaving technologies—all within a compact, rugged system built for fieldwork.

Equipped with six motors, a built-in high-precision electric cleaver, and real-time luminous flux alignment, the AI-30 dramatically boosts splicing accuracy and efficiency. With just 6 seconds for splicing and 15 seconds for heating, this unit is perfect for professionals handling high-density backbone cables and FTTH installations across challenging environments.

  • Integrated High-Precision Cleaver: One-step electric cleaving system with delayed blade return to reduce end-face damage
  • Six Motor Core Alignment: Ensures stable fiber positioning with accuracy of 0.05 µm
  • Fusion Speed: 6 seconds splicing, 15 seconds heating time
  • Real-Time Luminous Flux Assisted Alignment: Minimizes fusion loss intelligently
  • Display: 5” HD LCD screen, up to 320x magnification for precise fiber visualization
  • Multi-Functionality: Built-in VFL and OPM tools for loss measurement and fault detection
  • Multi-Language Interface: Supports 10 languages for global use
  • Automation: Auto lid, auto heating, auto blade rotation after usage thresholds
ParameterDetails
Alignment MethodCore/cladding; real-time luminous flux assisted
Motor System6 motors, 0.05 µm alignment precision
Splicing & Heating Time6s splice / 15s heat
Fiber Types SupportedSMF (G.652), BIF (G.657), MM, pigtail, drop cable, jumper fiber
Cladding Diameter80–150 µm
Fusion LossSM: 0.02 dB; MM: 0.01 dB; DS/NZDS: 0.04 dB
Cleaver TypeDelay return electric one-step cleaver with auto blade change
VFL Function15 mW output; 2Hz flashing & steady modes
OPM Function-50 to +30 dBm range, wavelength support for 850–1650 nm
Battery Capacity7800 mAh; up to 240 splices per charge
Magnification320x (single axis); 200x (dual axis)
Display5” TFT LCD touchscreen (color, HD)
Startup Time1 second
Wireless FeaturesBluetooth 4.2; app-based control, export, settings, and updates
Data LoggingUnlimited storage; 1000 internal records + server export
Protection RatingWaterproof, dustproof, shock-resistant
Working Environment-15°C to +50°C; <95% RH; 0–5000 m altitude; ≤15 m/s wind speed
Size & Weight165 × 255 × 185 mm; 3.09 kg unit; 4.5 kg with toolbox

​​
